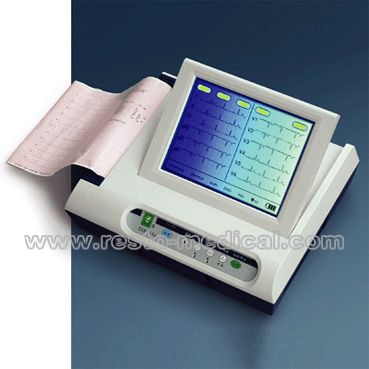

12 channel ECG machine

Product Name: 12 channel ECG machine
Model NO.: RT10406

Product Details: 12 channel ECG machine

FEATURES:
synchronously acquisition of 12-lead ecg waveforms and printer 12-leads ecg + measureement + analysis report ;
tft color lcd 12-leads ecg and operation menu display;
ac emg and dft filiers;
ac and dc power supply ,built -in rechargeable battery;
strily follpw iec60601-1 class i,type cf safety standard
SPECIFICATIONS:
lead: standard 12 leads; european leads
input circuit:floating,protection against defibillator effect
calibrating:1mvÂ± 2%
sensitivity:auto,5 10 20mm/mv
recording system: thermal-array
apeed:25, 50mm/s
rafety:standard iec class i ,type cf
power supply ac :220v (110v),50hz/60hz,45va
dc :14.4v-2000mah (li-lon)
dimensions: 376 mm x 300mm x 96mm
